Brand Name : TBC
Model Number : P20
Certification : CE-EMC, CE-LVD, RoHS, ETL, FCC
Place of Origin : China
MOQ : 10sqm
Price : Negotiable
Payment Terms : T/T,Western Union,PayPal
Supply Ability : 10,000sqm/month
Delivery Time : 15days
Packaging Details : Flight Case
Pixel Pitch : 20mm
Cabinet Size : 1000x80mm
Viewing Angle : 140°/140°
Pixels : 2500 dots/sqm
Transparency : 95%
Warranty : 2 years
Maintenance : Front/Rear
Max. Power : 300W
Grayscale : 16bit
3000Nits brightness, 1000mm x 64mm dimensions, 90% transparency with only 4mm thickness and IP30 protection rating.
| Parameter | Value |
|---|---|
| Pixel Pitch | 20mm |
| Pixel | 2500points/㎡ |
| LED specification | SMD2020 |
| Pixel composition | 1R1G1B |
| Module Size | 1000mm*80mm |
| Weight | 6kg/㎡ |
| Transparency | ≥95% |
| Brightness | 2500cd/㎡ |
| Peak power consumption | 300 W/㎡ |
| Average power consumption | About 100 W/㎡ (depending on the video source) |
| Refresh frequency | ≥3840hz |
| Grayscale level | 16Bit |
| Maintenance | Front/rear |
| Brightness control level | Grade 0-255 |
| Color temperature | 3200K-8500K (adjustable) |
| Frame change frequency | ≥60Hz |
| Viewing angle | H-H140 degrees V-V140 degrees |
| Input signal | DVI VGA, composite video |
| Control screen mode | Synchronous box (computer control) or asynchronous box (WiFi connection mobile phone APP control, USB flash drive control) |
| Protection grade | IP30 |
| Power supply requirements | AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) |
| Working temperature | -20~50 ℃ |
| Theoretical service life | 100000 hours |
| Warranty | 2 years |

|
|

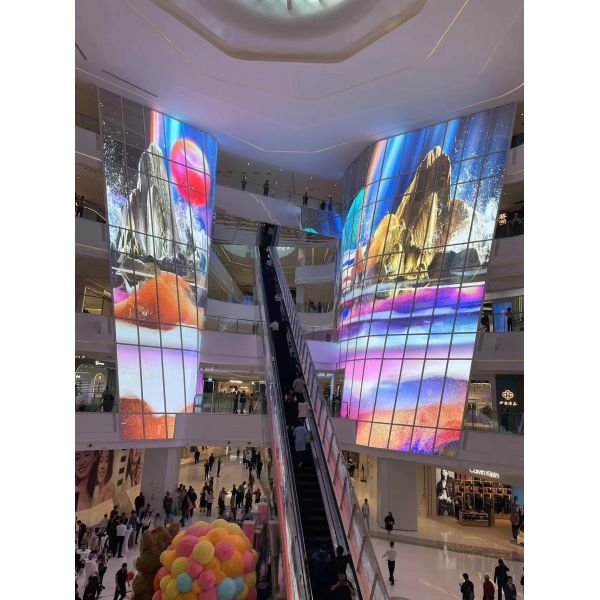

Indoor P20 Ultra-Thin Transparent LED Film Display with 2500Nits Brightness 1000mm x 80mm Cabinet Size and 2 Years Warranty Images |
