40mm Thickness HD LED Display P3.8mm Flexible Soft Module Nation Star ICN Driver IC 3840Hz

Brand Name : TBC

Model Number : F3.8

Certification : CE-EMC, CE-LVD, RoHS, ETL, FCC

Place of Origin : China

MOQ : 10sqm

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 10,000sqm/month

Delivery Time : 25days

Packaging Details : Wooden Box

Pixel Pitch : 3.8mm

Service : Front by magnet

Power : MeanWell

Size : 1'x1'

Thickness : 40mm

System : NOVA Star

Price : Negotiable

Contact Now

Indoor HD P3.8mm Concave and Convex Curved Led Soft Module 1'x 1' ICN Driver IC

Application:

FLEXIBLE MODULE

Is compatible for concave, convex, round, S shape led screen, to be used for any kind of creative stage design, shopping mall, column, with reliable quality and easy maintenance

Features and Advantages:

INNOVATIVE DESIGN

Flexible shape are possible to be made from concave, convex, and S shape led screen etc
Flexible Module with Housing in Segment
No limits to your design

FRONT SERVICE MAGNETIC DESIGN

Tiles made from magnesium, and is front accessible

POWER AND DATA INTEGRATED INPUT

One input combined power and data, save time for assembly and also enable the stability

INDEPENDENT CONTROL BOX

Independent control box could be fixed separately from the structure and module

CABLING WAY

One control box has 3 output, each output control 2 module, 6 on 1 control box

INTELLIGENT DESIGN

The degree between each segement is 8°, enable maximum 80 degree in convex and concave per module
The PCB and LED will not be damaged until housing was been broken apart
Less possility to be damaged during installation and maintenance

Parameters

Configuration	SMD2020
Pixel Pitch	3.81mm
Module Size(mm)	304.8 x 304.8mm(1ft*1ft)
Module Resolution (pixels)	80 x 80 pixels
Module Weight	0.9kg
Color Depth	12-16 bit
Colors	4096-65536
Refresh Rate(Hz)	≥1920 Hz
Scan Mode	43116
Brightness	800 nits
Viewing Distance (mm)	≥ 3.8mm
Viewing Angle(°)	110°
Input Voltage(V)	100-240 V/ 50-60 Hz
Max Power Consumption	350w/sqm
Ave Power Consumption	105w/sqm
Temperature	-20 ℃/+50℃ (working)
‐40 ℃/ +60℃ (storage)	‐40 ℃/ +60℃ (storage)
IP Level	IP 40 / IP 21
Humidity	10%~60% (working)
10%~90% (storage)	10%~90% (storage)
Lifespan(hours)	100000
Installation Way	Fix
LED	Kinglight/Nationstar
IC	ICN2053
Control Box	one control 8pcs modules

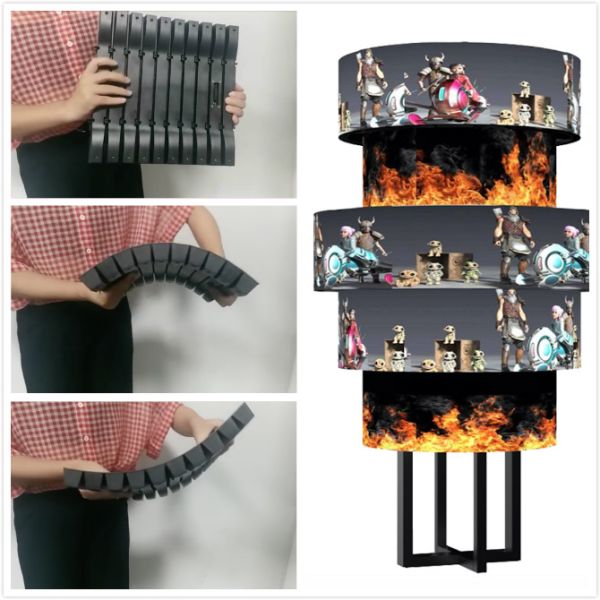

Pictures

40mm Thickness HD LED Display P3.8mm Flexible Soft Module Nation Star ICN Driver IC 3840Hz
